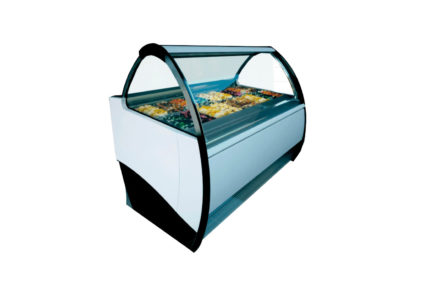

The Mito Power LX is available in 12,16,18,20 and 24 standard 5 liter pans (360 x 165 x 120 mm) or 8,10,12, and 16 large 5 liter pans (360 x 250 x 80 mm).
The windows are made of tempered glass and the facade can be opened upwards thanks to the presence of hydraulic pistons. A double evaporator, a double blade of cold air for a perfect balance of temperature.
Standard pans : 12 16 18 20 24
Large pans : 8 10 12 12 16
Technical specifications
Exterior dimensions all window models (P x H): 1168 x 1376 mm
Length display case (mm): 1100 (12 pans);1440 (16 pans); 1600 (18 pans); 1770 (20 pans); 2120 (24 pans)
Capacity (gross/net) in litres: 715/54 (12 pans); 948/112 (16 pans); 1064/126 (18 pans);1181/140 (20 pans); 1414/168 (24 pans)
Weight in kg: 235 (12 pans); 320 (16 pans);345 (18 pans); 365 (20 pans); 455 (24 pans)
Cooling: air / water / air + water
Cold ventilated
Cooling gas: R404A - R290
Climate class: 7 (R404A), 4 (R290)
Conditions of use: 35°C / 75% HR (R404A) or 30°C / 55% HR (R290)
Temperature control: -20°C - +2°C
Product temperature: -16/-14°C
Compressor: 1-hermetic (12 trays); 2-hermetic (16,18,20,24 trays)
Defrost: reverse cycle (R404A), hot gas (R290)
Power supply: 230 V/ 1 Ph/ 50 Hz
Customs code: 84185090
