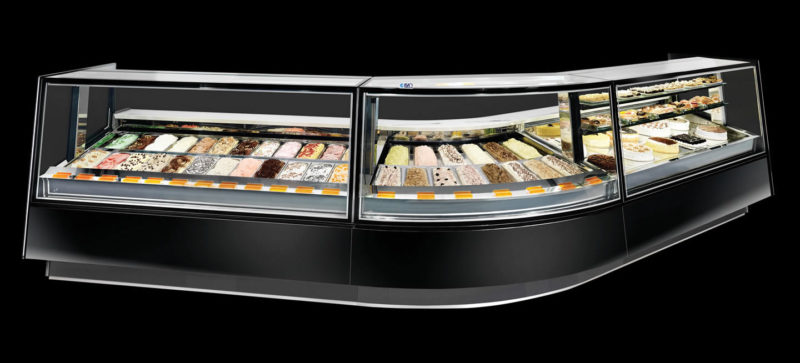

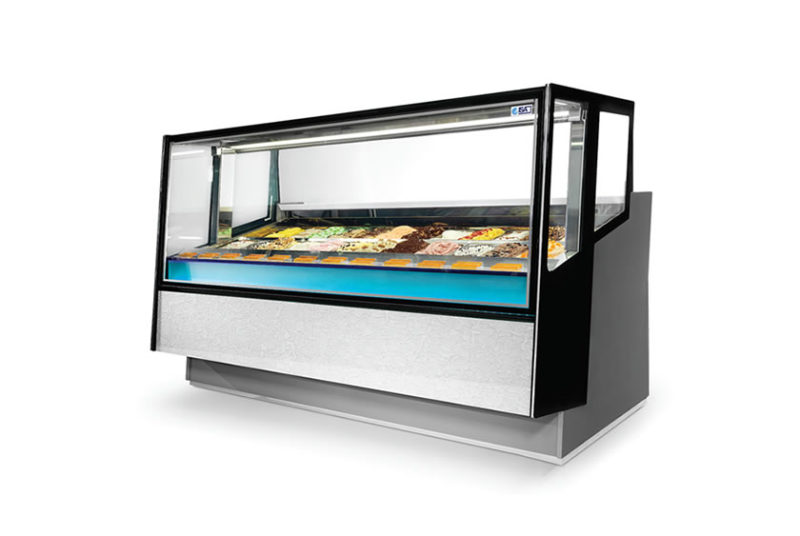

Kaleido is a functional shop window(showcase) in the sophisticated(refined) design. Slope of the 11 degree pans(ferries,high school diplomas) to offer the best visibility to the customers.Internal lighting assured(insured) by a triple band(strip) of leds for a perfect development of your ices(mirrors,ice creams). Solidity guaranteed thanks to the choice of materials as steel or the glass.
Kaleido is available in 12,18 and 24 tubs(ferries,high school diplomas) of classic 5 liters (360 x 165 x 120 mm) or in 8, 12, 16 tubs(ferries,high school diplomas) of wide 5 liters (360 x 250 x 80 mm).
The range Kaleido contains 2 models: H117 and H135 and 6 versions: 120, 170, 120+50 combi, 220, 170+50 combi, AE45.
Classic pans : 12 18 24
Large pans : 8 12 16
Technical specifications
External dimensions of the model H117 (P x H): 1198 x 1182 mm
External dimensions of the model H135 (P x H): 1198 x 1362 mm
Length shop window(showcase) (mm): 1182 ( 120 ); 1677 ( 170 ); 2172 ( 220 ); 1875 ( AE45); 1677 (120+50 combi); 2172 (170+50 combi)
(Raw / clear) capacity of the model H117 in liters: 685/147 (120); 1009/216 (170);1332/285 (220); 901/193 ( AE45); 1009/216 (120+50 combi); 1332/285 (170+50 combi)
(Raw / clear) capacity of the model H135 in liters: 824/147 (120); 1212/216 (170);1600/285 (220); 1082/193 ( AE45); 1212/216 (120+50 combi); 1600/285 (170+50 combi)
Weight of the model H117 in kg: 320 ( 120 );409 ( 170 ); 510 ( 220 ); 400 ( AE45); 409 (120+50 combi); 510 (170+50 combi)
Weight of the model H135 in kg: 346 ( 120 );434 ( 170 ); 535 ( 220 ); 425 ( AE45); 434 (120+50 combi); 535 (170+50 combi)
Cooling : air / water / air + water
Ventilated cold
Cooling gas : R404A
Climatic class : 7
Conditions of use : 35°C / 75 % HR
Regulation of the temperature :-20°C - +2°C
Temperature produces :-16 /-14°C
Compressor: 1 - hermetic (120); 2 - hermetic (170, 220, AE45, 120+50 combi, 170+50 combi)
Defrosting: inverted cycle
Food(Supply) of the version 120: 230 V / 1 PH / 50 Hz
Food(Supply) of the other versions: 400 V / 3 PH / 50 Hz
Customs code : 84185090
