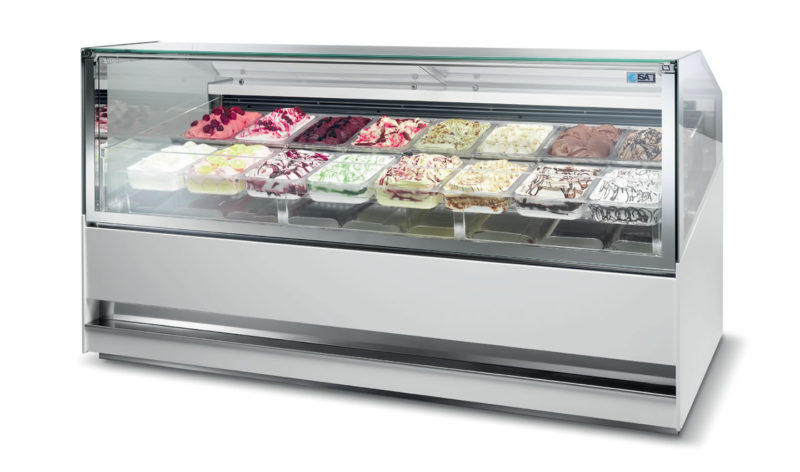

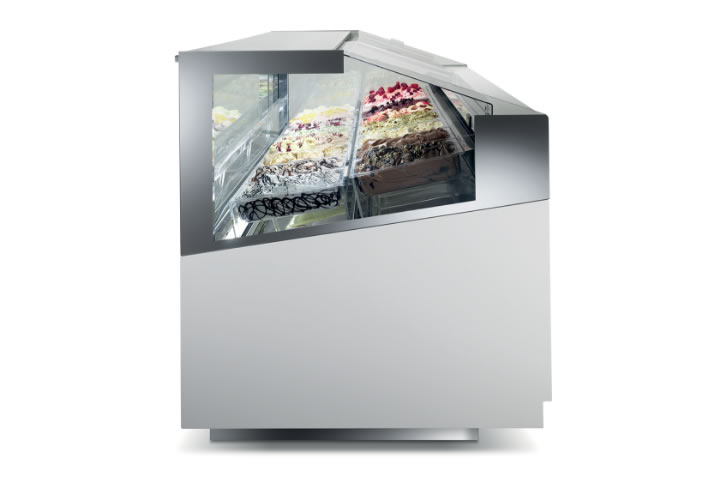

3Dshow offers a panoramic 3D view of the ice thanks to the structure and transparent pans.Full-led lighting. Electronic temperature control.
The 3Dshow is available in 12,16,18,20 and 24 standard 5 liter pans (360 x 165 x 120 mm) or 8,10,12, and 16 5 liter large pans (360 x 250 x 80 mm).
The 3Dshow range has 2 models: H117 and H135 and 5 versions: 120, 155, 170, 190, 220.
Standard pans : 12 16 18 20 24
Large pans : 8 10 12 12 16
Technical specifications :
Outer dimensions of model H117 (P x H): 1104 x 1170 mm
Outer dimensions of model H135 (P x H): 1104 x 1350 mm
Length window (mm): 1172 (120); 1502 (155); 1667 (170); 1832 (190); 2162 (220)
Capacity (gross/net) of model H117 in litres: 685/147 (120); 1083/193 (155); 1212/216 (170); 1116/239 (190); 1332/285 (220)
Capacity (gross/net) of model H135 in litres: 824/147 (120); 901/193 (155); 1009/216 (170); 1341/239 (190); 1600/285 (220)
Model weight H117 in kg: 330 (120); 390 (155); 425 (170); 460 (190); 525 (220)
Model weight H135 in kg: 340 (120); 400 (155); 435 (170); 470 (190); 535 (220)
Cooling: air / water / air + water
Cold ventilated
Cooling gas: R404A
Climate class: 4
Conditions of use: 30°C / 55% RH
Temperature control: -20°C - +2°C
Product temperature: -16/-14°C
Compressor: 1 semi-hermetic
Defrost: reverse cycle
Power supply: 400 V/ 3 Ph/ 50 Hz
Customs code: 84185090
